WCS on Google Cloud Platform

Since build 5.2.679, WCS can be deployed on Google Cloud Platform as standalone media server, CDN with low latency and CDN with load balancing between nodes.

Anyway, before deploying, the following should be prepared:

• an active GCP account and a project in the account
• a WCS license to activate on server/servers
• optionally, domain names to bind to bind to servers static IPs and corresponding SSL certificates

Server deployment

Create and launch VM instance

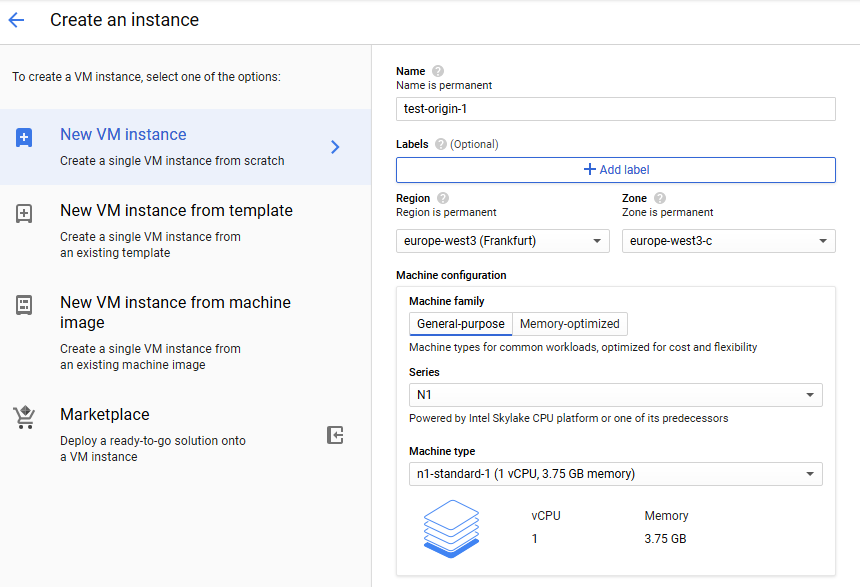

1. In Google Cloud console go to Compute Engine - VM instances section and click Create VM instance to start VM creation. Choose the server name, datacenter region and zone, VM configuration

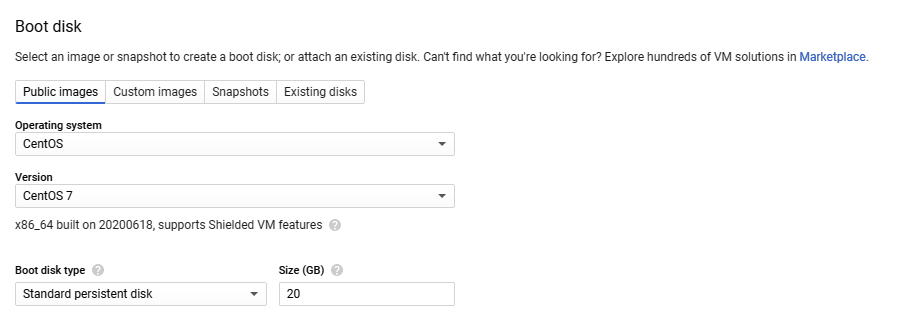

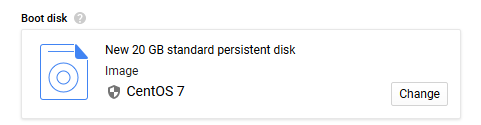

2. In Boot disk section click Change. Choose CentOS 7.6 base image

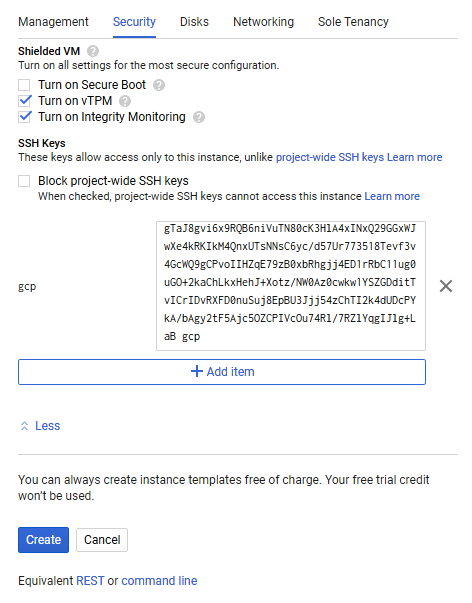

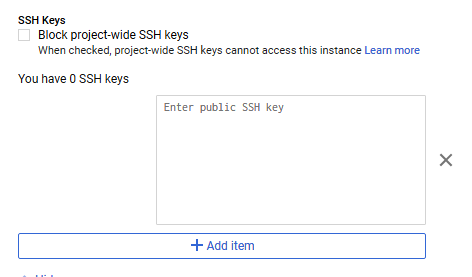

3. On Security tab add the public SSH key if you do not have project SSH keys

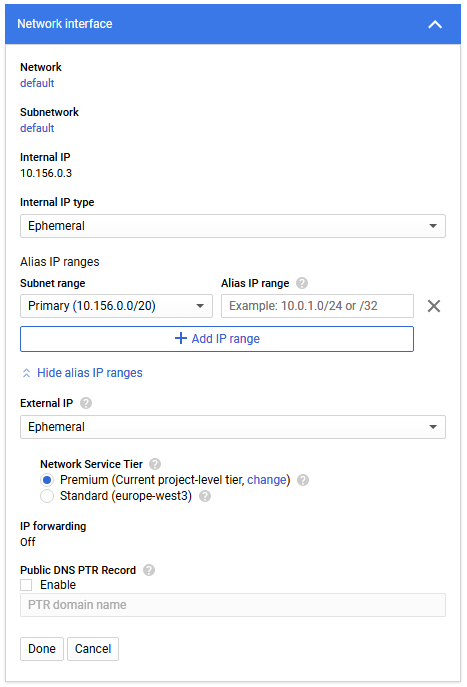

4. On Network tab choose external and internal IP addresses:

5. if the server supposed to be Origin in CDN, it is recommended to reserve a static internal IP address;

6. if there should be external entry points to the server (for example, to use for publishing/playing streams), it is recommended to reserve a static external IP address to bind domain name to


7. Click Create

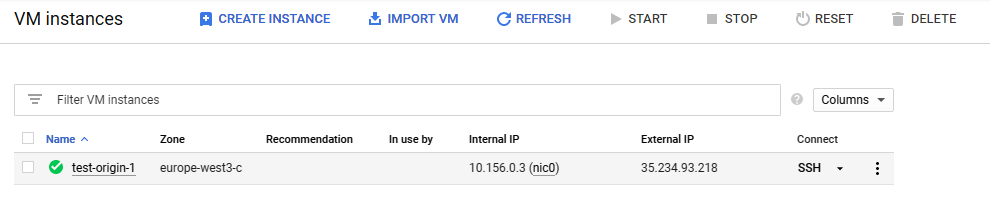

   The server instance wuill be created and launched


Firewall rules setup

Firewall rules affect all the instances in the project, so they should be set up once

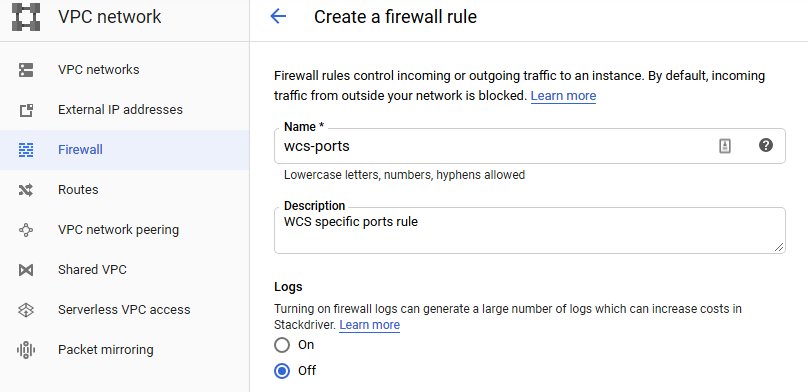

1. Go to VPC network - Firewall section and create wcs-ports rule

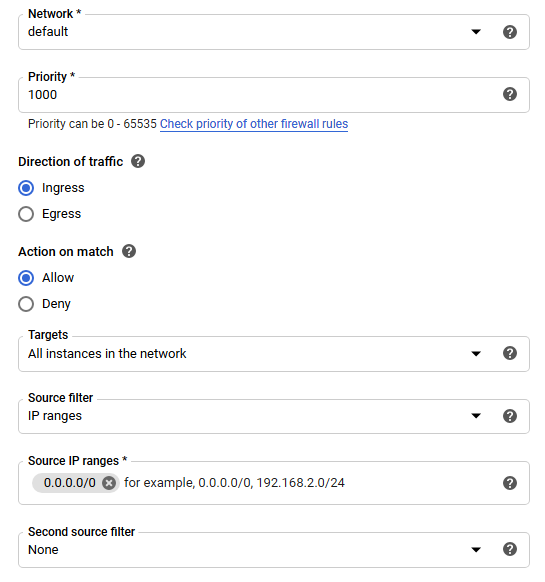

2. Allow incoming (ingress in terms of GCP) traffic from any node

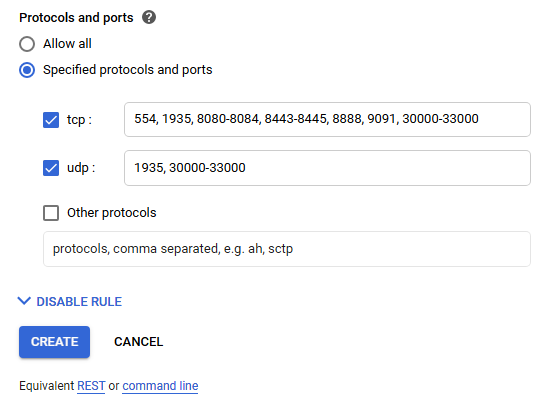

3. Specify WCS ports and click Create


WCS installation and configuration

1. Install JDK. It is recommended to use at least JDK 12 or 14 if high load is planning


   #!/bin/bash
   sudo rm -rf jdk*
   curl -s https://download.java.net/java/GA/jdk12.0.2/e482c34c86bd4bf8b56c0b35558996b9/10/GPL/openjdk-12.0.2_linux-x64_bin.tar.gz | tar -zx
   [ ! -d jdk-12.0.2/bin ] && exit 1
   sudo mkdir -p /usr/java
   [ -d /usr/java/jdk-12.0.2 ] && sudo rm -rf /usr/java/jdk-12.0.2
   sudo mv -f jdk-12.0.2 /usr/java
   [ ! -d /usr/java/jdk-12.0.2/bin ] && exit 1
   sudo rm -f /usr/java/default
   sudo ln -sf /usr/java/jdk-12.0.2 /usr/java/default
   sudo update-alternatives --install "/usr/bin/java" "java" "/usr/java/jdk-12.0.2/bin/java" 1
   sudo update-alternatives --install "/usr/bin/jstack" "jstack" "/usr/java/jdk-12.0.2/bin/jstack" 1
   sudo update-alternatives --install "/usr/bin/jcmd" "jcmd" "/usr/java/jdk-12.0.2/bin/jcmd" 1
   sudo update-alternatives --install "/usr/bin/jmap" "jmap" "/usr/java/jdk-12.0.2/bin/jmap" 1
   sudo update-alternatives --set "java" "/usr/java/jdk-12.0.2/bin/java"
   sudo update-alternatives --set "jstack" "/usr/java/jdk-12.0.2/bin/jstack"
   sudo update-alternatives --set "jcmd" "/usr/java/jdk-12.0.2/bin/jcmd"
   sudo update-alternatives --set "jmap" "/usr/java/jdk-12.0.2/bin/jmap"


2. Install accessory tools and libraries


   sudo yum install -y tcpdump mc iperf3 fontconfig


3. Stop firewalld (it ti not necessary to block any ports on VM level because firewall rules were set up on project level)


   sudo systemctl stop firewalld
   sudo systemctl disable firewalld


4. Disable SELinux


   sudo setenforce 0


5. Install WCS


   curl -OL https://flashphoner.com/downloads/builds/WCS/5.2/FlashphonerWebCallServer-5.2.xxx.tar.gz
   tar -xzf FlashphonerWebCallServer-5.2.xxx.tar.gz
   cd FlashphonerWebCallServer-5.2.xxx
   sudo ./install.sh


   Where xxx is WCS actual build number

6. Activate your license


   cd /usr/local/FlashphonerWebCallServer/bin
   sudo ./activation.sh

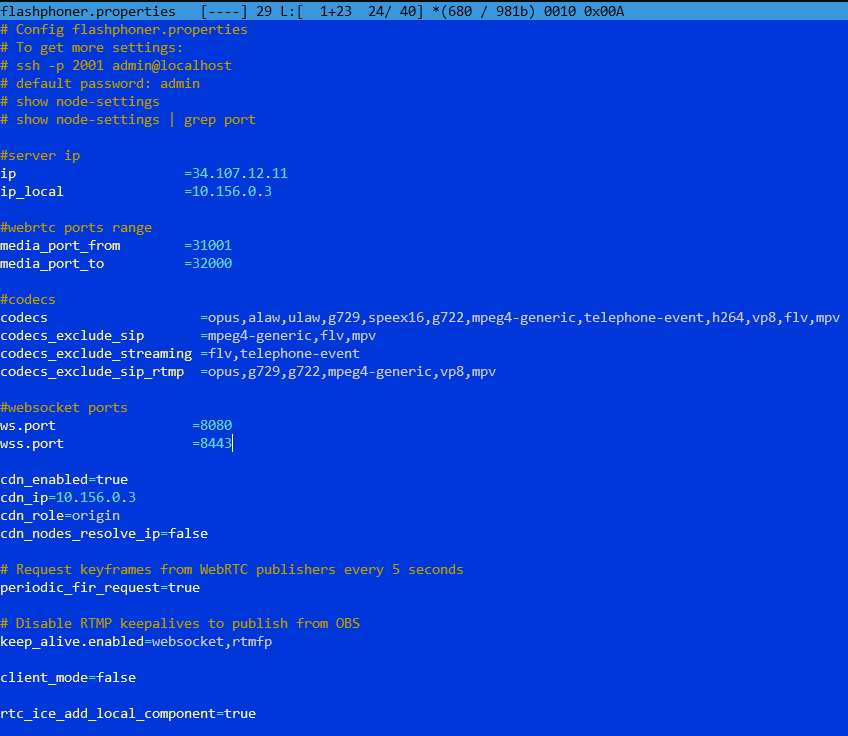

7. Configure WCS (below the example of Origin server settings to publish WebRTC and RTMP streams)

   Do not change IP addresses in ip, ip_local и cdn_ip settings, they will be configured automatically on WCS startup.

WCS starting and testing

1. Start WCS


   sudo systemctl start webcallserver

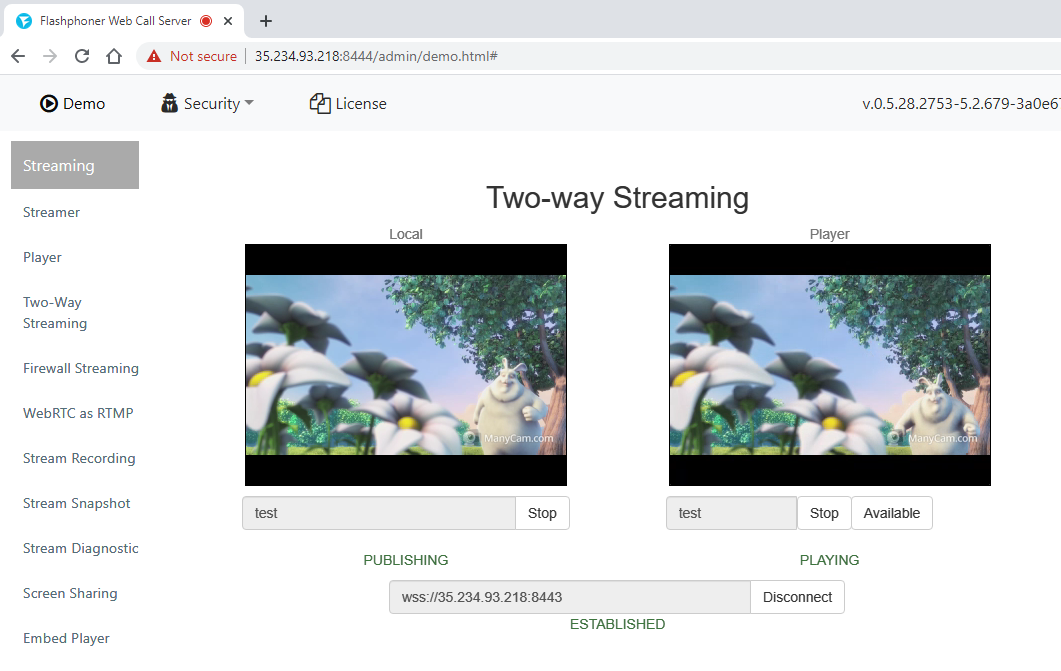

2. Enter to WCS web interface, open Two Way Streaming example, publish and play test stream


CDN deployment

1. Create and configure Origin server as described above

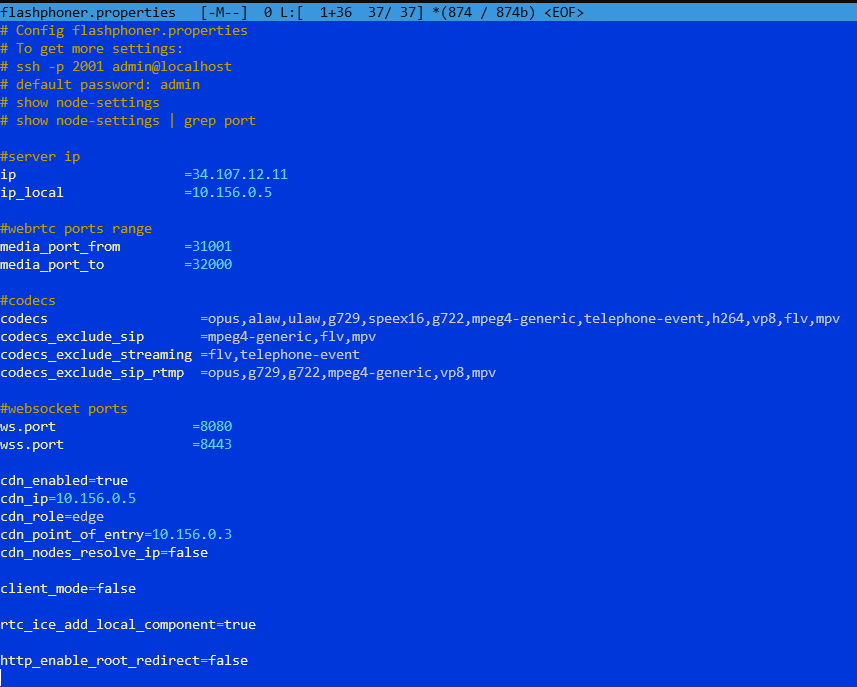

2. Create and configure Edge server (below the example of Edge server settingt to play WebRTC streams)

   Do not change IP addresses in  ip, ip_local и cdn_ip settings, they will be configured automatically on WCS startup. Set the cdn_point_of_entry parameter to Origin server static internal IP address

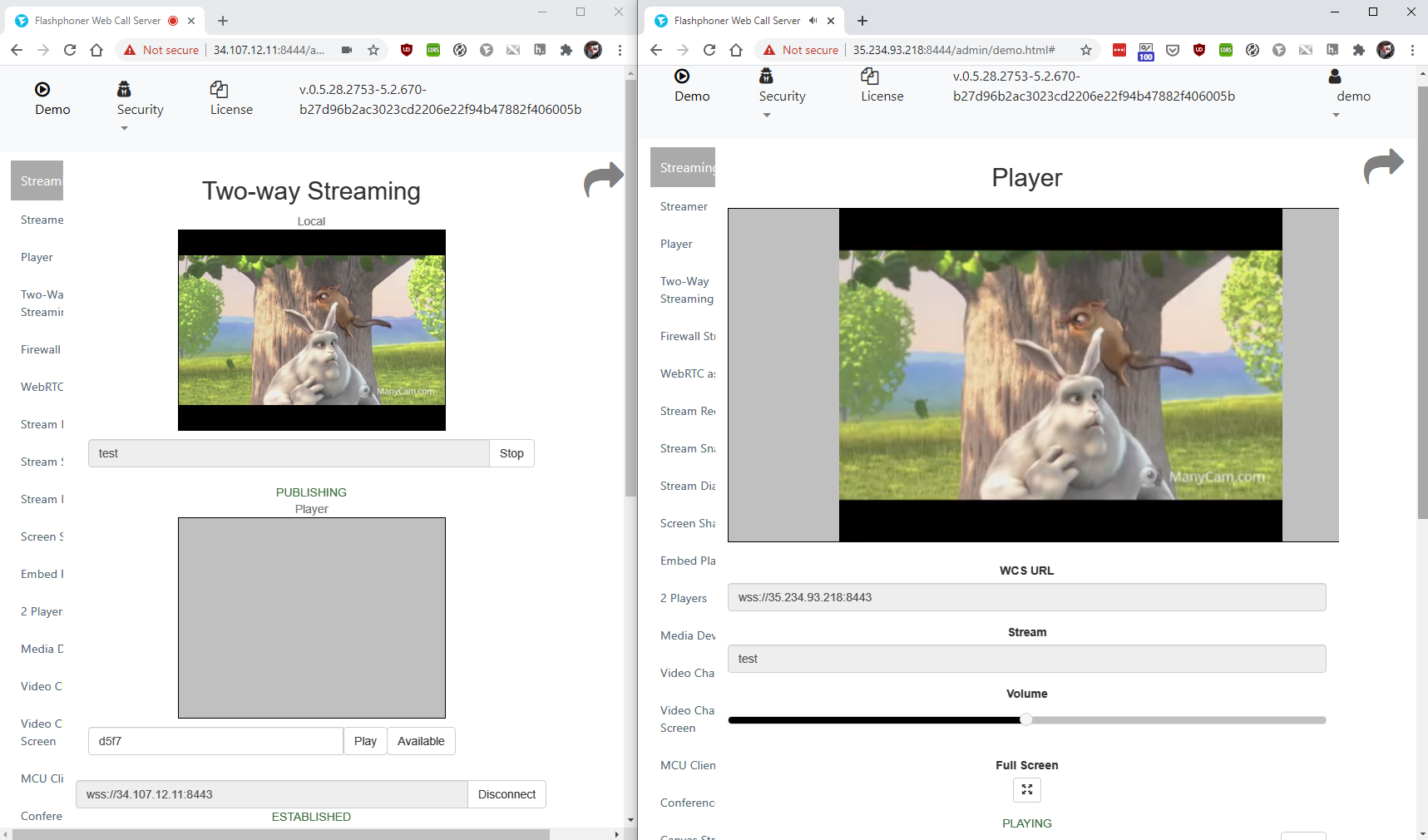

CDN testing

1. Start WCS on Origin and Edge VM instances.

2. Go to Origin web interface and publish test stream in Two Way Streaming example

3. Go to Edge web interface and play test stream in Player example
