Server core (WCS Core)¶
The Core includes the following subsystems:
| Submodule | Ports | Format | Protocol | Description |
|---|---|---|---|---|
| Websocket server | 8080, 8443 | Websocket frames, JSON | TCP | Provides support for HTML5 Websocket and Secure Websocket |
| SIP client | 30000-31000 | SIP | TCP, UDP | Provides support for SIP to work with PBX SIP servers and SIP Proxy |
| RTMFP server | 1935 | AMF3 | UDP | Provides support for the RTMFP protocol to work with Flash Player |
| RTMP server | 1935 | AMF3 | TCP | Provides support for the RTMP protocol |
| RTMP client | 33001-34000 | TCP | ||
| RTSP server | 554 | RTSP-packets | TCP | Provides support for the RTSP protocol |
| RTSP client | 32000-32999 | RTSP-packets | TCP | Fetches a stream from another server via the RTSP protocol followed by opening of RTP ports to receive traffic and play in a browser |
| CDN client | 34001-35000 | Websocket frames | TCP | Provides signaling support for CDN based on WCS servers |
| CDN server | 8084 | TCP | ||
| WebRTC agent | 34001-35000 | Websocket frames | TCP | Provides support for interaction with other WCS servers via Websocket/WebRTC |
| HTTP server | 8081, 8444 | HTTP, JSON | TCP | Provides support for HTTP and HTTPS protocols for web interface, WCS RESTful API, load balancing and requests for statistics |
| HLS server | 8082, 8445 | HLS | TCP | Provides support for HLS over HTTP/HTTPS |
| RTP module | 31000-31999 | Audio codecs: Opus, G.711, Speex, G.729, AAC and video codecs: H.264, VP8, H265 | UDP | Provides support for RTP and SRTP protocols to exchange audio and video traffic |
| ICE, DTLS, RTCP | 31000-31999 | ICE packets, DTLS packets, RTCP packets | TCP, UDP | Provides support for WebRTC technologies (including WebRTC over TCP) to establish connection with an ICE and DTLS web browser, as well as support for RTCP profiles RTP/AVP, RTP/SAVPF |
| JMX Server | 50999 | JMX | TCP | Monitors the server process using the JMX console or Visual VM. |
| Metrics server | 7777 | Server functioning metrics | TCP | Local interface to translate server functioning metrics |
| Core CLI SSH | 2001, 2002 | SSH | TCP | Core CLI support |
| Audio Transcoder | audio tracks in streams | Convert one media data format to another | ||
| Video Transcoder | video tracks in streams | |||
| Mixer | streams on the server | Mixes streams |

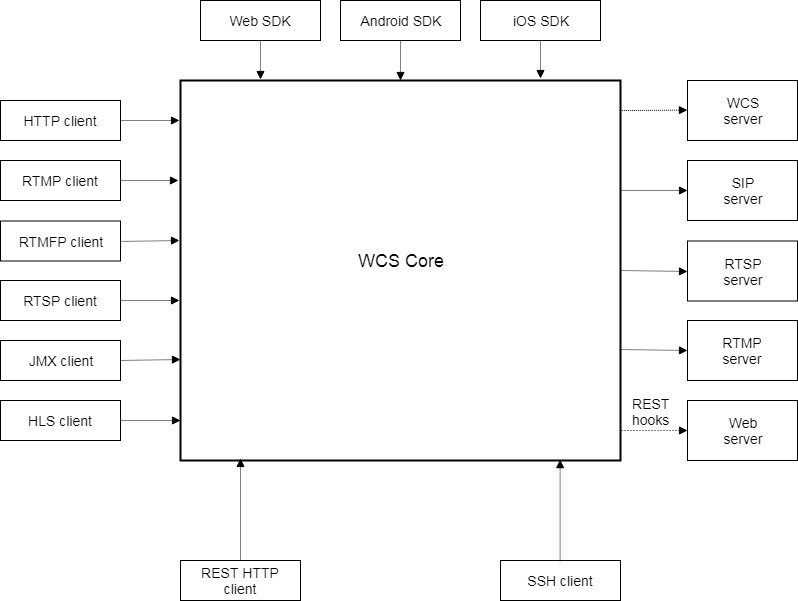

A simplified flowchart of Core operation:
