WCS Core logs¶

Logging settings¶

WCS Core logging is handled by the log4j.properties config and a number of settings in flashphoner.properties:

Logging settings in `flashphoner.properties`¶

Setting	Default value
client_log_level	`INFO`
client_dump_level	`0`
enable_extended_logging	`true`

Logs are stored to /usr/local/FlashphonerWebCallServer/logs

client_logs - WCS client session logs collected on the server side
server_logs - general logs collected on the server side.

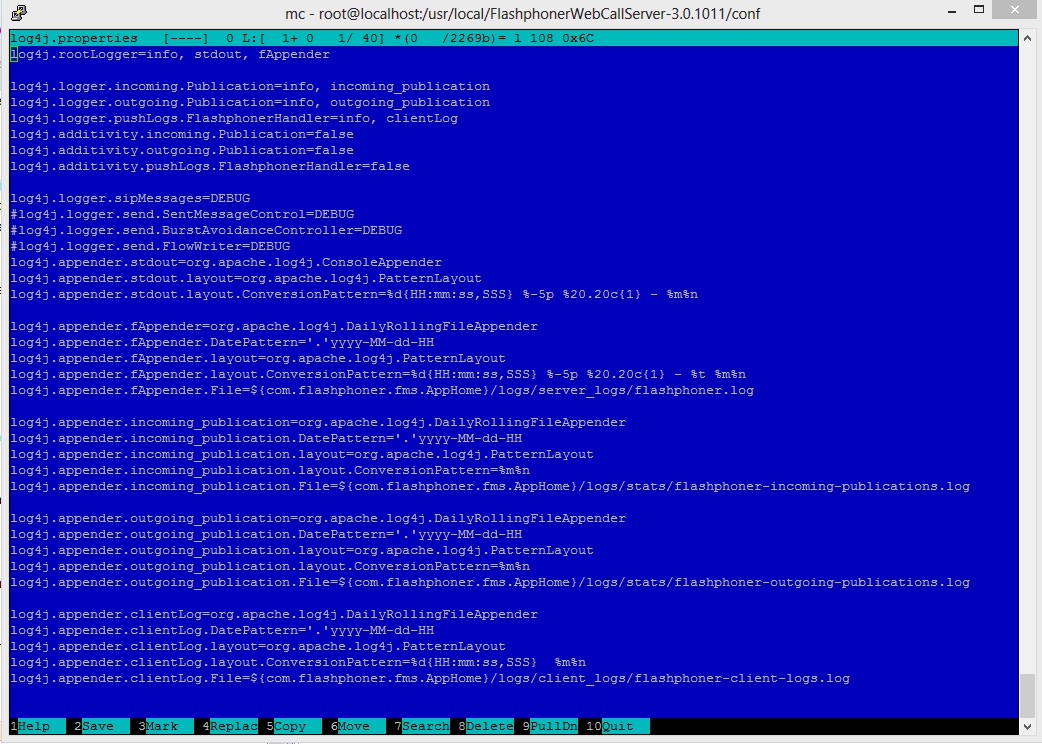

Logging settings in `log4j.properties`¶

This is a standard config of the log4j format.

Settings description¶

Attribute	Value	Description
log4j.rootLogger	`info, stdout, fAppender`	Root logger: - `info` - INFO logging level. More detailed levels, for example, `DEBUG` and `TRACE`, and less detailed, for example, `ERROR` are available - `stdout, fAppender` - set how and where logs are written
log4j.logger.incoming.Publication	`info, incoming_publication`	SIP calls statistics logger for the traffic incoming from a SIP server: - `info` - logging level - `incoming_publication` - sets how and where logs are written
log4j.logger.outgoing.Publication	`info, outgoing_publication`	SIP calls statistics logger for the traffic outgoing to a SIP server: - `info` - logging level - `incoming_publication` - sets how and where logs are written
log4j.logger.pushLogs.FlashphonerHandler	Not used	Not used
log4j.additivity.incoming.Publication	`false`	Do not add these logs to the general log, writing them as individual logs instead
log4j.additivity.outgoing.Publication	`false`	Do not add these logs to the general log, writing them as individual logs instead
log4j.logger.sipMessages	`debug`	Put incoming and outgoing SIP messages to the log
log4j.logger.WSServerHandler	`trace`	Put outgoing Websocket messages to the log
log4j.logger.WSClient	`debug`	Put incoming Websocket messages to the log
log4j.appender.stdout	`org.apache.log4j.ConsoleAppender`	Write logs to stdout
log4j.appender.fAppender	`org.apache.log4j.DailyRollingFileAppender`	Write logs to a file
log4j.appender.incoming_publication	`org.apache.log4j.DailyRollingFileAppender`	Write RTMFP incoming publication statistics to a file
log4j.appender.outgoing_publication	`org.apache.log4j.DailyRollingFileAppender`	Write RTMFP outgoing publication statistics to a file
log4j.appender.clientLog	`org.apache.log4j.DailyRollingFileAppender`	Not used

Logging settings hot swapping¶

WCS automatically catches changes made to the log4j.properties file. This is convenient for debugging purposes and to receive additional logs without restarting the server. For instance, when you need to enable more detailed logs and change the output format of logs. However, for higher reliability during production, we recommend restarting the WCS server nevertheless.

Websocket messages tracing¶

For debugging purpose, or to develop your own API, all Websocket messages tracing except transport ones may be enabled. To log all incoming/outgoing Websocket messages to websocket.log file in /usr/local/FlashphonerWebCallServer/logs/server_logs directory, the following strings should be added to log4j.properties file:

log4j.logger.WSServerHandler=trace, wsAppender
log4j.logger.WSClient=debug, wsAppender
log4j.appender.wsAppender=org.apache.log4j.DailyRollingFileAppender
log4j.appender.wsAppender.DatePattern='.'yyyy-MM-dd-HH
log4j.appender.wsAppender.layout=org.apache.log4j.PatternLayout
log4j.appender.wsAppender.layout.ConversionPattern=%d{HH:mm:ss,SSS} %-5p %20.20c{1} - %t %m%n
log4j.appender.wsAppender.File=${com.flashphoner.fms.AppHome}/logs/server_logs/websocket.log

Client logs¶

Switching on, off and managing logging level¶

Client logs are server side client session logs. Client logs are only written to client_logs if the following parameter is set (by default)

enable_extended_logging=true

To switch client logging off set the following in flashphoner.properties file

enable_extended_logging=false

You can configure the logging detail level using the client_log_level setting that can assume the following values: ERROR, INFO, DEBUG, TRACE, default is

client_log_level=INFO

It is recommended to use cron in conjuction with find to periodically purge client logs. For example, to check for outdated logs every 24 hours and delete all logs older than 30 days add the following cron task

0 0 * * * find /usr/local/FlashphonerWebCallServer/logs/client_logs/ -type d -mtime +30 | xargs rm -rf

Enabling debug log for all the client sessions¶

To diagnose a problem, sometimes it is necessary to enable debug logging for all newly connected client sessions, to write to client logs connection establishing process and stream publishing start. This feature can be enabled since build 5.2.512 with the following parameter

client_log_force_debug=true

For all newly connected clients debug logs will be recorded during interval defined with the following parameter in seconds

client_log_force_debug_timeout=60

By default client debug logs will be written in 60 seconds for each session connected.

These settings can be changed with CLI and applied without server restart.

Using flight recorder¶

Flight recorder function allows to cyclically write some latest events for stream published. This information may help to diagnose problems with stream publishing without full client debug logs enabling. Flight recorder is enabled with the following parameter in flashphoner.properties file

enable_flight_recorder=true

It is necessary to set events category that will be written (defined by developer)

flight_recorder_categories=WCS1438

The events are written for publisher client to flight_recorder.log file, if stream publishing stops by some error, or stream is corrupted by some way.

To test flight recorder, the parameter should be set

enable_flight_recorder_test=true

without restarting WCS server. It saves the events to file for all publishers connected.

Warning

The enable_flight_recorder_test parameter is not intended to use in production

Client logs tuning¶

Since build 5.2.2040 client logs output may be tuned at a certain logger level. The settings file client-log4j.properties is used to do that. A logger name and level are set in the file:

Session=INFO
_com.flashphoner.media.AudioSession=INFO
_com.flashphoner.media.VideoSession=INFO
_com.flashphoner.media.MediaSession=DEBUG

The changes are applied on the fly, WCS restart is not required.

Client log structure and content¶

Client logs structure:

client_logs
---- 2018-05-16
-------- 84gij60a6u3ni7docsr1di1l5b-15-06-59
------------ flashphoner.log
------------ client-84gij60a6u3ni7docsr1di1l5b-2018.05.16.15.07.26-1526458046646.report
------------ MediaDump-85d65b00-639e-4a7e.31002-31004-31006-31008.pcap

`flashphoner.log` file¶

Client logs are recorded to client_logs by dates. For each date, a directory is created with the name formatted as YYYY-MM-DD, for instance, 2018-05-16.

When a client establishes connection to the server, a folder for the current client session is created inside the date folder, for example, 84gij60a6u3ni7docsr1di1l5b-15-06-59, where 84gij60a6u3ni7docsr1di1l5b is a session login, 15 is hours, 06 is minutes, 59 is seconds. In the directory the flashphoner.log file is written, which contains only those server events that are relevant to this specific client session. Hence, we see when the client connected to the server, and what logs were recorded for this client's session.

`client-report` file¶

This is an additional client log. The web client has a special WCS JavaScript API function pushLog. This function sends to the WCS server logs recorded on the browser side. All logs received from the web client using pushLog are saved on the server. When the web client ends a session with the WCS server, the received logs are recorded to the client-84gij60a6u3ni7docsr1di1l5b-2018.05.16.15.07.26-1526458046646.report file, where 84gij60a6u3ni7docsr1di1l5b is a session login, 2018 is year, 05 is month, 26 is day, 15 is hours, 07 is minutes, 26 is seconds, 1526458046646 is milliseconds.

Media traffic dumps¶

If a non-zero value is set for the client_dump_level` setting in the flashphoner.properties settings file, a dump session is additionally recorded for a client:

if client_dump_level=1, only SIP traffic is recorded;
if client_dump_level=2, all media traffic is recorded.

Traffic is recorded using tcpdump, if this utility is installed in the system.

`flight_recorder.log` file¶

Last events for stream published are written to this file.

Client Logging level managing "on the fly"¶

Logging level for certain session may be changed on the go, without server restart. To do this, REST API is used

REST query should be HTTP/HTTPS POST request such as:

HTTP: http://test.flashphoner.com:8081/rest-api/logger/enable_client_log
HTTPS: https://test.flashphoner.com:8444/rest-api/logger/enable_client_log

Here:

test.flashphoner.com is WCS server address
8081 is WCS standard REST / HTTP port
8444 is WCS standard HTTPS port
rest-api is required URL prefix
/logger/enable_client_log is REST method used

REST methods and responses¶

/logger/enable_client_log¶

Set the logging level specified in session specified

Request example¶

POST /rest-api/logger/enable_client_log HTTP/1.1
Host: localhost:8081
Content-Type: application/json

{
    "sessionId": "/127.0.0.1:57539/192.168.1.101:8443",
    "logLevel": "DEBUG"
}

Response example¶

HTTP/1.1 200 OK
Access-Control-Allow-Origin: *
Content-Type: application/json

Return codes¶

Code	Reason
200	OK
404	Session not found

/logger/disable_client_log¶

Fully disable logging in session specified

Request example¶

POST /rest-api/logger/disable_client_log HTTP/1.1
Host: localhost:8081
Content-Type: application/json

{
    "sessionId": "/127.0.0.1:57539/192.168.1.101:8443"
}

Response example¶

HTTP/1.1 200 OK
Access-Control-Allow-Origin: *
Content-Type: application/json

Return codes¶

Code	Reason
200	OK
404	Session not found

Parameters¶

Parameter name	Description	Example
sessionId	Session Id	`/127.0.0.1:57539/192.168.1.101:8443`
logLevel	Logging level to set	`DEBUG`

Thus, when problem occurs with stream published on server (for example, the stream is published but cannot be played), REST query should be sent to server to switch logging level to DEBUG and then, when problem is reproduced and data are collected, to switch logging level back to INFO. Also it is possible to switch logging off in certain client session.

Logging level changes with REST queries affects only the session specified, but not another sessions including sessions that will be created later.

Server logs¶

WCS writes general server logs to /usr/local/FlashphonerWebCallServer/logs/server_logs folder

server_logs
---- flashphoner.log
---- flashphoner.log.2018-05-17-16

In these logs you can track start of the server and its starting settings:

tail -f /usr/local/FlashphonerWebCallServer/logs/server_logs/flashphoner.log

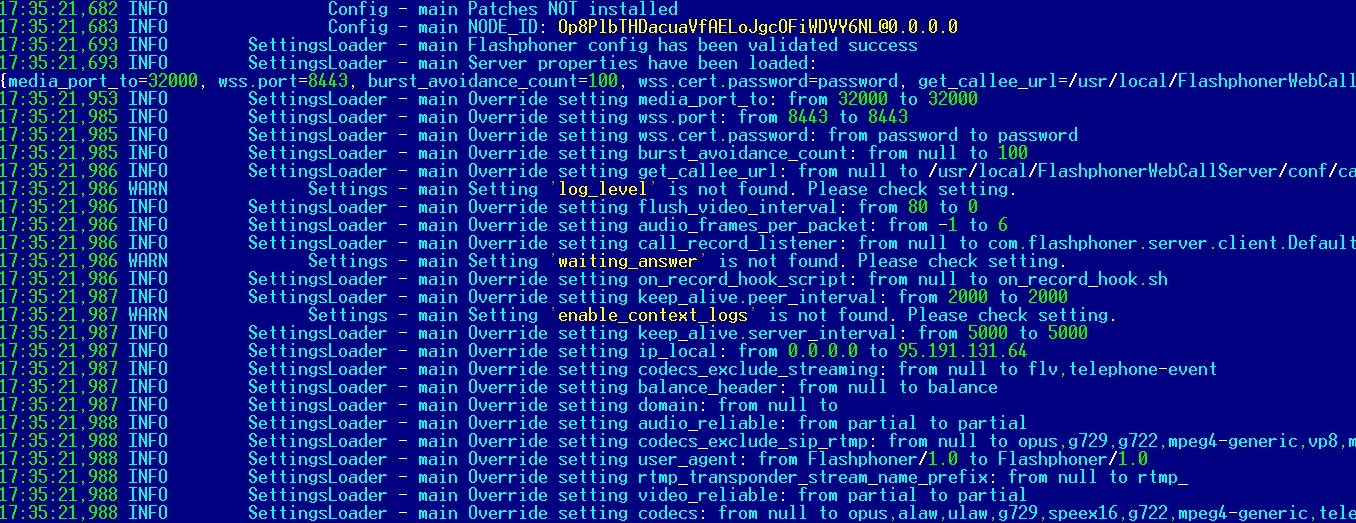

Server startup

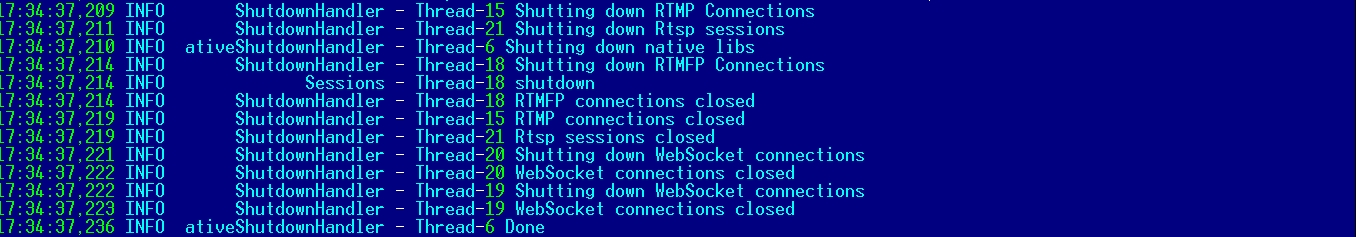

Shutting down the server

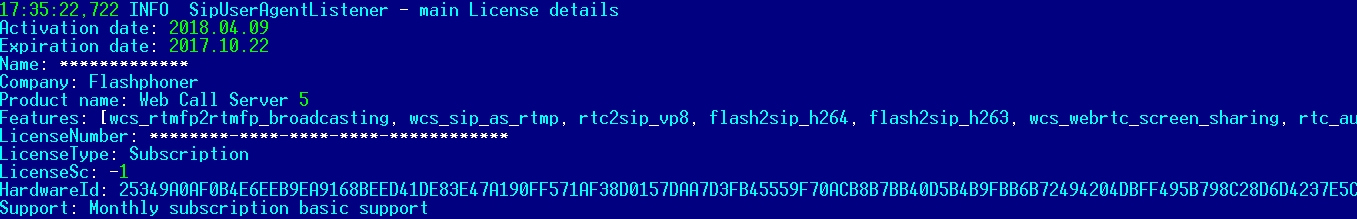

Licensing information:

Besides, REST hooks queries information is displayed in server logs:

08:01:06,649 INFO            RestClient - API-ASYNC-pool-8-thread-2 SEND REST OBJECT ==>
URL:http://localhost:8081/EchoApp/StreamStatusEvent
OBJECT:
{
  "nodeId" : "rR3YA7yKB11iIIID4XkYveTF8ePhezMU@0.0.0.0",
  "appKey" : "defaultApp",
  "sessionId" : "/5.44.168.45:58541/95.191.131.65:8443",
  "mediaSessionId" : "58488550-99dd-11e8-bf13-9b5947c0a0f5",
  "name" : "569a",
  "published" : true,
  "hasVideo" : true,
  "hasAudio" : true,
  "status" : "PUBLISHING",
  "audioCodec" : "opus",
  "videoCodec" : "H264",
  "info" : "Unknown",
  "record" : false,
  "width" : 0,
  "height" : 0,
  "bitrate" : 0,
  "minBitrate" : 0,
  "maxBitrate" : 0,
  "quality" : 0,
  "timeShift" : -1,
  "createDate" : 1533603665644,
  "mediaProvider" : "WebRTC",
  "history" : false,
  "origin" : "https://test.flashphoner.com:8888"
}

Therefore, server logs show general information about server operation. You can receive more detailed information in logs that are recorded individually for each client session.

CDR logs¶

Сall Detail Record is a SIP calls log.

CDR records are added to a log file located at /usr/local/FlashphonerWebCallServer/logs/cdr/cdr.log. A new log file is created every 24 hours. Data are recorded as a CSV file, so they can be easily processed.

Field names are not recorded to the file.

Record format:

src;dst;cid;start;answer;end;billsec;disposition

Record example:

3000;3001;f294f6116bf2cc4c725f20457ed76e5b@192.168.56.2;2014-11-21 15:01:37; 2014-11-21 15:01:41; 2014-11-21 15:02:45;64;ANSWERED

Field	Description
src	Caller
dst	Callee
cid	Call identifier
start	Call start (date and time)
answer	Date and time the call is answered by the subscriber or the SIP side
end	Date and time the call ended
billsec	Time in seconds between `answer` and `end`
disposition	Call result: `ANSWERED`, `NO_ANSWER`, `BUSY`, `FAILED`

MDR logs¶

Message Detail Record is a SIP messages log.

MDR records are added to a log file located at /usr/local/FlashphonerWebCallServer/logs/cdr/mdr.log. A new log file is created every 24 hours. Data are recorded as a CSV file, so they can be easily processed.

Field names are not recorded to the file.

Record format:

date,msgId,from,to,disposition

Record example:

Fri Dec 26 15:26:16 NOVT 2014,null,A006,A005,RECEIVED

Field	Description
date	Date and time of the message
msgId	Message identifier
from	SIP from
to	SIP to
disposition	Message result: `RECEIVED, SENT, FAILED` - `RECEIVED` - the message is received. - `SENT` - the message is sent. - `FAILED` - there were an error while sending the message.

You can also gather any message statistics and their statuses you need using WCS REST hooks.

SDR logs¶

Stream Detail Record is a stream publishing and playing session logs.

SDR records are written to the file located at /usr/local/FlashphonerWebCallServer/logs/cdr/sdr.log. A new log file is created every 24 hours. Data are recorded as a CSV file, so they can be easily processed.

Field names are not recorded to the file.

Record format:

start;mediaProvider;name;mediaSessionId;duration;disposition;info;type;subscribers;

Record example:

2015-11-11 08:36:13;Flash;stream-Bob;5c2d75c0-7d87-421d-aa93-2732c48d8eaa;00:00:48;UNPUBLISHED;;PUBLISH;3;

Field	Description
start	Date and time the session started
mediaProvider	The media provider used in WCS JavaScript API: WebRTC, Flash, MSE
name	Name of the published / played stream
mediaSessionId	Media session identifier
duration	Duration of the session
disposition	Session result: `UNPUBLISHED, STOPPED, FAILED` - `UNPUBLISHED` - publishing of the stream was stopped - `STOPPED` - playing of the stream was stopped - `FAILED` - incorrect session end
info	If `disposition==FAILED`, this field contains the description of the reason
type	`PUBLISH` if publishing the stream `SUBSCRIBE` if playing the stream
subscribers	The number of subscribers in case of publishing the stream; 0 if playing the stream

CONNDR logs¶

Connection Detail Record is a WebSocket sessions log.

CONNDR records are written to the file located at /usr/local/FlashphonerWebCallServer/logs/cdr/conndr.log. A new log file is created every 24 hours. Data are recorded as a CSV file, so they can be easily processed.

Field names are not recorded to the file.

Record format:

start;mediaSessionId;disposition;info;duration;

Record example:

2018-04-25 19:29:08;/5.44.168.45:52199/95.191.131.64:8443;DISCONNECTED;Normal disconnect;17;

Field	Description
start	Date and time the session started
mediaSessionId	Media session identifier
disposition	Session result: `DISCONNECTED, FAILED` `DISCONNECTED` - the session ended by client's initiative `FAILED` - incorrect session end
info	Contains information about the session end
duration	Duration of the session

GC logs¶

By default garbage collector log files are located in /usr/local/FlashphonerWebCallServer/logs directory.

logs
---- gc-core-2018-12-18_20-02.log
---- gc-core-2018-12-18_19-56.log

The location and prefix of the log files can be configured in wcs-core.properties file.

To enable log rotation by the JVM, the following options can be added to wcs-core.properties:

-XX:+UseGCLogFileRotation
-XX:NumberOfGCLogFiles=10
-XX:GCLogFileSize=2M

Then the log files will have names like

logs
---- gc-core.log2018-12-14_18-57.log.0
---- gc-core.log2018-12-14_18-57.log.1
---- gc-core.log2018-12-14_18-57.log.2
---- gc-core.log2018-12-14_18-57.log.3
---- gc-core.log2018-12-14_18-57.log.4.current

File with suffix current is the file currently being recorded.

To remove creation time from log file names, remove date from variable GC_SUFFIX in /usr/local/FlashphonerWebCallServer/bin/setenv.sh:

GC_SUFFIX=".log"

Then the log files will have names like

logs
---- gc-core.log.0
---- gc-core.log.1
---- gc-core.log.2.current

Mediasessions statistics logs¶

Since build 5.2.1883 a current mediasessions statistics may be collected. The statistics may be logged to save it to a file when mediasession is closed. Also, since build 5.2.1975 the parameter is used to enable this feature

media_session_connection_stats_log=true

The mediasessions statistics is logged to the /usr/local/FlashphonerWebCallServer/logs/stats/media-session-connection-stats.log file in CSV form

#{mediaSessionId}; {channels_not_writable}; {decodable_drops_old}; {incomplete_drops_old}; {decodable_drops_reset}; {incomplete_drops_reset}; {decodable_drops_pli}; {incomplete_drops_pli}; {data_packets_with_empty_payload}; {missed_h264_units}; {dropped_audio_data_packets}; {total_redundant_bytes}; {total_redundant_packets}; {used_redundant_bytes}; {used_redundant_packets}; {total_packets}; {lost_packets}; {total_redundant_out_bytes}; {total_redundant_out_packets}

Where

mediaSessionId - mediasession id
channels_not_writable - TCP channels not writable events count
decodable_drops_old - H264 decodable frames dropped count
incomplete_drops_old - H264 incomplete frames dropped count
decodable_drops_reset - H264 decodable frames dropped before a new decoding point count
incomplete_drops_reset - H264 incomplete frames dropped before a new decoding point count
decodable_drops_pli - H264 decodable frames dropped on PLI receiving count
incomplete_drops_pli - H264 incomplete frames dropped on PLI receiving count
data_packets_with_empty_payload - data packets with empty payload sent to test a channel quality when TWCC is enabled count
missed_h264_units - missed H264 units count, per mediasession
dropped_audio_data_packets - audio packets dropped before passing them to server engine

Since build 5.2.2247, the following data were added

total_redundant_bytes - redundant audio data received from publisher, in bytes
total_redundant_packets - redundant audio data received from publisher, in packets
used_redundant_bytes - redundant audio data used, in bytes
used_redundant_packets - redundant audio data used, in packets
total_packets - audio packets received from publisher
lost_packets - audio packets lost
total_redundant_out_bytes - redundant audio data sent to subscribers, in bytes
total_redundant_out_packets - redundant audio data sent to subscribers, in packets

The record example

a7d00990-3ac6-11f0-a232-f5eb5e73b518; 0; 0; 0; 0; 0; 0; 0; 3; 0; 0; 401409; 5543; 0; 0; 5542; 0; 0; 0

The statistics logging should be set up in log4j.properties file as follows

log4j.logger.MediaSessionConnectionStats=error, mediaSessionConnectionStatsAppender
log4j.additivity.MediaSessionConnectionStats=false
log4j.appender.mediaSessionConnectionStatsAppender=com.flashphoner.common.logging.NewLogForEachRunFileAppender
log4j.appender.mediaSessionConnectionStatsAppender.DatePattern='.'yyyy-MM-dd-HH
log4j.appender.mediaSessionConnectionStatsAppender.layout=org.apache.log4j.PatternLayout
log4j.appender.mediaSessionConnectionStatsAppender.layout.ConversionPattern=%m%n
log4j.appender.mediaSessionConnectionStatsAppender.File=${com.flashphoner.fms.AppHome}/logs/stats/media-session-connection-stats.log

If mediasession statistics logging is enabled, but there are no corresponding settings in log4j.properties file, the statistics will be logged to server log at ERROR level:

ERROR ssionConnectionStats - API-ASYNC-pool-7-thread-3 359943b0-fc64-11ee-bd5a-1dcbd3939090; 0; 0; 0; 0; 0; 0; 0; 40; 0; 0

Websocket messages logging¶

Since build 5.3.163, all websocket traffic between server and client may be logged to a separate log file /usr/local/FlashphonerWebCallServer/logs/websocket.log, for example

02:54:05,739 IN 192.168.23.83:60659 connection 831
02:54:05,777 OUT 192.168.23.83:60659 getUserData 3684
02:54:05,778 OUT 192.168.23.83:60659 getVersion 84
02:54:07,881 IN 192.168.23.83:60659 publishStream 7314
02:54:07,925 OUT 192.168.23.83:60659 setRemoteSDP 3142
02:54:08,111 OUT 192.168.23.83:60659 notifyStreamStatusEvent 2309
02:54:08,121 IN 192.168.23.83:60659 sendStreamEvent 118
02:54:08,126 IN 192.168.23.83:60659 sendStreamEvent 118
02:54:09,842 OUT 192.168.23.83:60659 ping 28
02:54:09,849 IN 192.168.23.83:60659 pong 32
02:54:14,843 OUT 192.168.23.83:60659 ping 28
02:54:14,858 IN 192.168.23.83:60659 pong 32
02:54:14,941 IN 192.168.23.83:60659 playStream 6804
02:54:14,966 OUT 192.168.23.83:60659 notifyAudioCodec 94
02:54:14,970 OUT 192.168.23.83:60659 setRemoteSDP 3750
02:54:15,091 OUT 192.168.23.83:60659 notifyStreamStatusEvent 1286
02:54:15,118 OUT 192.168.23.83:60659 notifyVideoFormat 167
02:54:15,131 OUT 192.168.23.83:60659 notifyStreamEvent 177
02:54:19,845 OUT 192.168.23.83:60659 ping 28
02:54:19,856 IN 192.168.23.83:60659 pong 32
02:54:24,846 OUT 192.168.23.83:60659 ping 28
02:54:24,851 IN 192.168.23.83:60659 pong 32
02:54:25,772 IN 192.168.23.83:60659 stopStream 189
02:54:25,797 OUT 192.168.23.83:60659 notifyStreamStatusEvent 1315
02:54:26,909 IN 192.168.23.83:60659 unPublishStream 196
02:54:26,931 OUT 192.168.23.83:60659 notifyStreamStatusEvent 2350

The log file contains the following fields: - timestamp - direction: IN or OUT - client IP address and port - message name - data size

When debug level is enabled, the log also contains a message body.

Websocket traffic logging should be set up as follows in log4j.properties file if upgrading from earlier WCS builds

log4j.logger.WsInLogger=info, wsInAppender
log4j.additivity.WsInLogger=false

log4j.logger.WsOutLogger=info, wsOutAppender
log4j.additivity.WsOutLogger=false

log4j.appender.wsInAppender=org.apache.log4j.DailyRollingFileAppender
log4j.appender.wsInAppender.DatePattern='.'yyyy-MM-dd-HH
log4j.appender.wsInAppender.layout=org.apache.log4j.PatternLayout
log4j.appender.wsInAppender.layout.ConversionPattern=%d{HH:mm:ss,SSS} IN %m%n
log4j.appender.wsInAppender.File=${com.flashphoner.fms.AppHome}/logs/websocket.log

log4j.appender.wsOutAppender=org.apache.log4j.DailyRollingFileAppender
log4j.appender.wsOutAppender.DatePattern='.'yyyy-MM-dd-HH
log4j.appender.wsOutAppender.layout=org.apache.log4j.PatternLayout
log4j.appender.wsOutAppender.layout.ConversionPattern=%d{HH:mm:ss,SSS} OUT %m%n
log4j.appender.wsOutAppender.File=${com.flashphoner.fms.AppHome}/logs/websocket.log

CVE-2021-44228 vulnerability¶

CVE-2021-44228 vulnerability in Apache log4j library cannot be exploited on WCS server. The logger can be configured via log4j.properties only, so attacker must have access to server file system. The vulnerability cannot be exploited via input fields etc. Let's check:

Use the URL https://log4shell.huntress.com/ to check the server. This page will generate an unique link to insert to a web page input fields

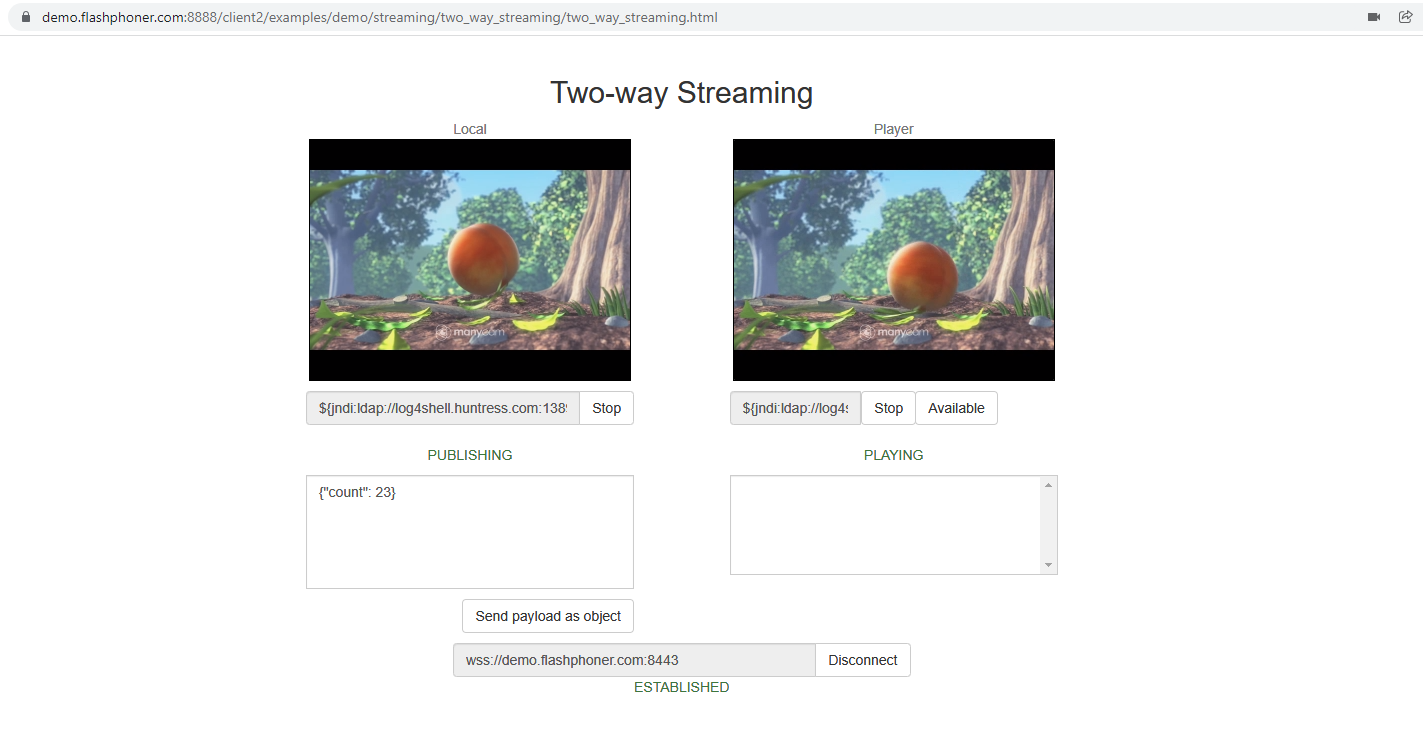

Open Two Way Streaming example page on demo server https://demo.flashphoner.com:8888/client2/examples/demo/streaming/two_way_streaming/two_way_streaming.html, click Connect and insert the test link to stream name fields. Publish and play a stream:

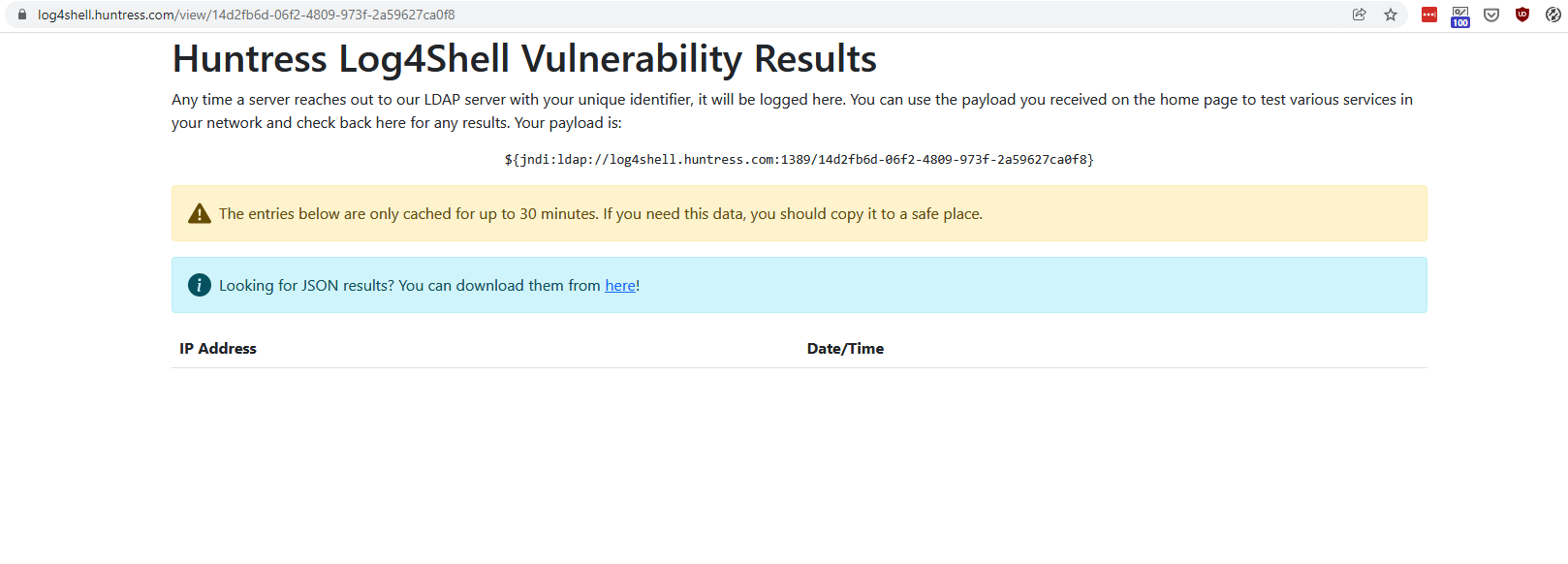

Open a special link to view test results. If vulnerability is exploited, IP address and Date/Time columns will show connections from tested server:

As test shows, the CVE-2021-44228 vulnerability cannot be exploited in WCS build 5.2.1109 and later

Under the hoods: why WCS is not vulnerable¶

WCS uses Apache log4j 1.2.17. This old version does not support JDNI feature which is added since log4j 2.0-beta9. Therefore, CVE-2021-44228 vulnerability cannot be exploited in WCS.

WCS Core logs¶

Logging settings¶

Logging settings in flashphoner.properties¶

Logging settings in log4j.properties¶

Settings description¶

Logging settings hot swapping¶

Websocket messages tracing¶

Client logs¶

Switching on, off and managing logging level¶

Enabling debug log for all the client sessions¶

Using flight recorder¶

Client logs tuning¶

Client log structure and content¶

flashphoner.log file¶

client-report file¶

Media traffic dumps¶

flight_recorder.log file¶

Client Logging level managing "on the fly"¶

REST methods and responses¶

/logger/enable_client_log¶

Request example¶

Response example¶

Return codes¶

/logger/disable_client_log¶

Request example¶

Response example¶

Return codes¶

Parameters¶

Server logs¶

CDR logs¶

MDR logs¶

SDR logs¶

CONNDR logs¶

GC logs¶

Mediasessions statistics logs¶

Websocket messages logging¶

CVE-2021-44228 vulnerability¶

Under the hoods: why WCS is not vulnerable¶

Logging settings in `flashphoner.properties`¶

Logging settings in `log4j.properties`¶

`flashphoner.log` file¶

`client-report` file¶

`flight_recorder.log` file¶
