Canvas Streaming¶

Overview¶

The example shows how to capture video from web camera using HTML5 Canvas with optional mirroring.

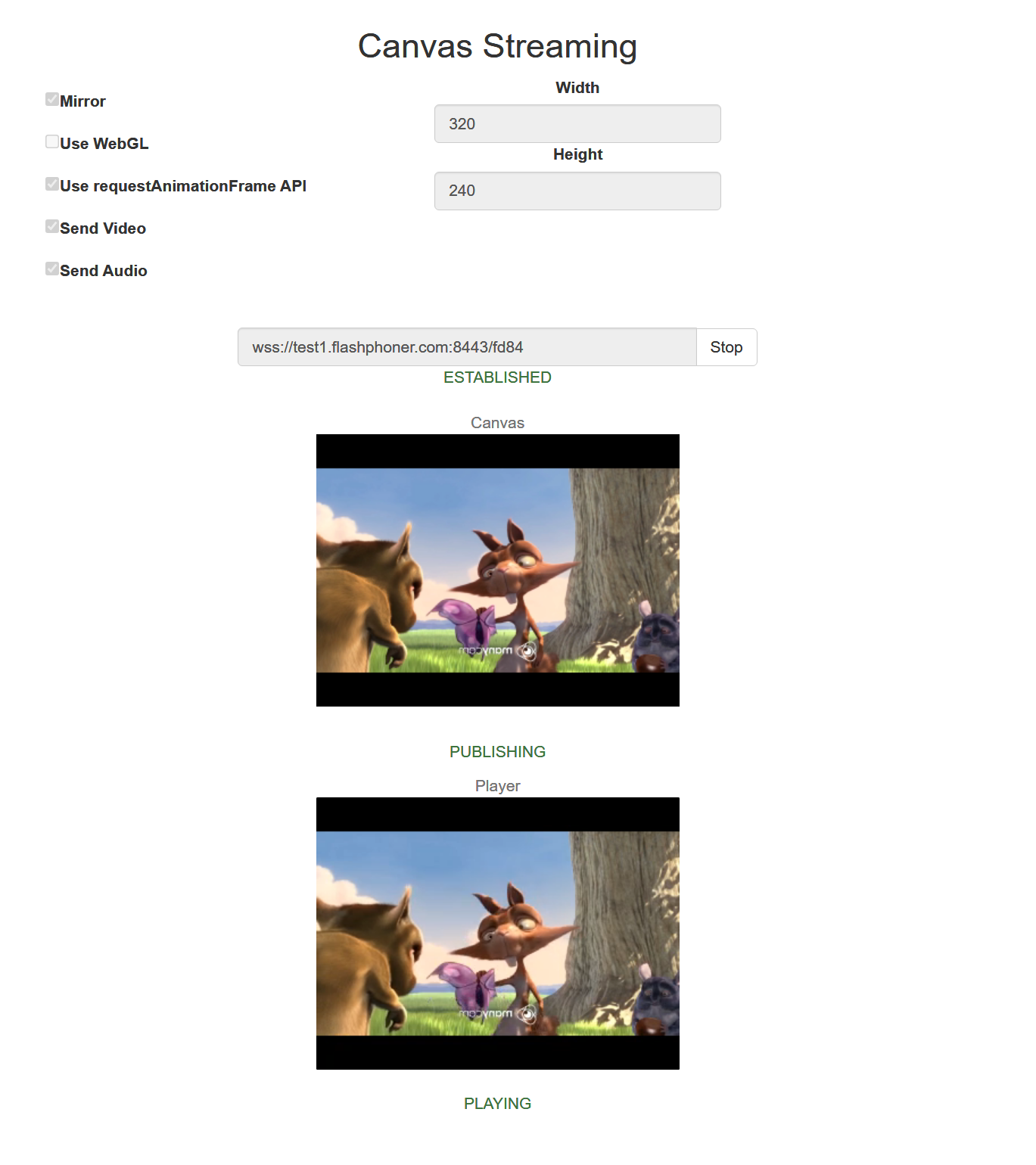

On the screenshot below the stream is published from 320x240 canvas using requestAnimationFrame method to draw frames and mirroring the frame

The code of the example¶

The example code is available on WCS server by the following path:

/usr/local/FlashphonerWebCallServer/client2/examples/demo/streaming/canvas_streaming

canvas_streaming.css - styles file
canvas_streaming.html - client page
canvas_streaming.js - main script to work

The example can be tested by the following URL:

https://host:8888/client2/examples/demo/streaming/canvas_streaming/canvas_streaming.html

Where host - WCS server address.

Analyzing the code¶

To analyze the code take the file canvas_streaming.js version with hash 485b3fb, which is available here and can be downloaded with SDK build 2.0.259.

1. API initialization¶

Flashphoner.init() code

const init_page = function() {
    //init api
    try {
        Flashphoner.init();
    } catch (e) {
        setText("notifyFlash", "Your browser doesn't support WebRTC technology needed for this example");
        return;
    }

    ...
}

2. Container creation for mock video element¶

code

Video and audio tracks are captured from HTML5 video element which is out of HTML page DOM and, therefore, is invisible. So the container to place the video element should also be out of DOM.

const init_page = function() {
    ...

    localVideo = document.createElement("localVideo");
    ...
}

3. Connecting to the server¶

Flashphoner.createSession() code

const connect = function() {
    let url = getValue('urlServer');

    //create session
    console.log("Create new session with url " + url);
    Flashphoner.createSession({urlServer: url}).on(SESSION_STATUS.ESTABLISHED, function(session){
        ...
    }).on(SESSION_STATUS.DISCONNECTED, function(){
        ...
    }).on(SESSION_STATUS.FAILED, function(){
        ...
    });
}

4. Receiving the event confirming successful connection¶

SESSION_STATUS.ESTABLISHED code

const connect = function() {
    let url = getValue('urlServer');

    //create session
    console.log("Create new session with url " + url);
    Flashphoner.createSession({urlServer: url}).on(SESSION_STATUS.ESTABLISHED, function (session) {
        currentSession = session;
        setStatus("connectStatus", session.status());
        startStreaming();
    }).on(SESSION_STATUS.DISCONNECTED, function () {
        ...
    }).on(SESSION_STATUS.FAILED, function () {
        ...
    });
}

5. Canvas stream publishing¶

Session.createStream(), Stream.publish() code

The following parameters are passed to createStream() method:

streamName - stream name
localVideo - container for HTML5 video element
constraints.audio: false - audio is captured from custom canvas stream
constraints.video: false - video is captured from custom canvas stream
constraints.customStream - custom canvas stream

const startStreaming = function() {
    let session = currentSession;
    let streamName = getValue("urlServer").split('/')[3];
    let canvasStream = createCanvasStream();

    session.createStream({
        name: streamName,
        display: localVideo,
        constraints: {
            audio: false,
            video: false,
            customStream: canvasStream
        }
    }).on(STREAM_STATUS.PUBLISHING, function (stream) {
        ...
    }).on(STREAM_STATUS.UNPUBLISHED, function () {
        ...
    }).on(STREAM_STATUS.FAILED, function () {
        ...
    }).publish();
}

6. Receiving the event confirming successful stream publishing¶

STREAM_STATUS.PUBLISHING code

The published stream playback starts on this event

const startStreaming = function() {
    ...
    session.createStream({
        ...
    }).on(STREAM_STATUS.PUBLISHING, function (stream) {
        setStatus("publishStatus", STREAM_STATUS.PUBLISHING);
        playStream();
        onPublishing(stream);
    }).on(STREAM_STATUS.UNPUBLISHED, function () {
        ...
    }).on(STREAM_STATUS.FAILED, function () {
        ...
    }).publish();
}

7. Playing the stream¶

Session.createStream(), Stream.play() code

The following parameters are passed to createStream() method:

streamName - stream name
remoteVideo - container for HTML5 video element
constraints - constraints to play audio and video tracks

Also, display size is set according to canvas size

const playStream = function() {
    let session = currentSession;
    let streamName = getValue("urlServer").split('/')[3];
    let width = getValue("width");
    let height = getValue("height");

    setDisplaySize(remoteVideo.parentNode, width, height);

    session.createStream({
        name: streamName,
        display: remoteVideo,
        constraints: {
            audio: !Browser.isiOS(),
            video: true
        }
    }).on(STREAM_STATUS.PENDING, function (stream) {
        ...
    }).on(STREAM_STATUS.PLAYING, function (stream) {
        ...
    }).on(STREAM_STATUS.STOPPED, function () {
        ...
    }).on(STREAM_STATUS.FAILED, function (stream) {
        ...
    }).play();
}

8. Receiving the event confirming successful stream playback¶

STREAM_STATUS.PLAYING code

const playStream = function() {
    ...
    session.createStream({
        ...
    }).on(STREAM_STATUS.PENDING, function (stream) {
        ...
    }).on(STREAM_STATUS.PLAYING, function (stream) {
        setStatus("playStatus", stream.status());
        onPlaying(stream);
    }).on(STREAM_STATUS.STOPPED, function () {
        ...
    }).on(STREAM_STATUS.FAILED, function (stream) {
        ...
    }).play();
}

9. Stopping the stream playback¶

Stream.stop() code

const stopBtnClick = function() {
    ...
    if (previewStream != null) {
        previewStream.stop();
        previewStream = null;
    }
}

10. Receiving the event confirming successful playback stopping¶

STREAM_STATUS.STOPPED code

const playStream = function() {
    ...
    session.createStream({
        ...
    }).on(STREAM_STATUS.PENDING, function (stream) {
        ...
    }).on(STREAM_STATUS.PLAYING, function (stream) {
        ...
    }).on(STREAM_STATUS.STOPPED, function () {
        setStatus("playStatus", STREAM_STATUS.STOPPED);
        onStopped();
    }).on(STREAM_STATUS.FAILED, function (stream) {
        ...
    }).play();
}

11. Stopping the stream publishing after playback¶

Stream.stop() code

const onStopped = function() {
    ...
    if (publishStream != null && publishStream.published()) {
        publishStream.stop();
    }
}

12. Receiving the event confirming successful published stream stopping¶

STREAM_STATUS.UNPUBLISHED code

const startStreaming = function() {
    ...
    session.createStream({
        ...
    }).on(STREAM_STATUS.PUBLISHING, function (stream) {
        ...
    }).on(STREAM_STATUS.UNPUBLISHED, function () {
        setStatus("publishStatus", STREAM_STATUS.UNPUBLISHED);
        onUnpublished();
        disconnect();
    }).on(STREAM_STATUS.FAILED, function () {
        ...
    }).publish();
}

13. Stopping canvas streaming and destroying canvas¶

code

const onUnpublished = function() {
    publishStream = null;
    stopCanvasStream();
}

14. Session disconnection¶

Session.disconnect() code

const disconnect = function() {
    if (currentSession) {
        currentSession.disconnect();
    }
}

15. Receiving the event confirming successful session disconnection¶

SESSION_STATUS.DISCONNECTED code

const connect = function() {
    let url = getValue('urlServer');

    //create session
    console.log("Create new session with url " + url);
    Flashphoner.createSession({urlServer: url}).on(SESSION_STATUS.ESTABLISHED, function (session) {
        ...
    }).on(SESSION_STATUS.DISCONNECTED, function () {
        setStatus("connectStatus", SESSION_STATUS.DISCONNECTED);
        onDisconnected();
    }).on(SESSION_STATUS.FAILED, function () {
        ...
    });
}

16. Canvas and video elements initialization¶

code

const createCanvasStream = function() {
    let type = getCheckbox("webGl") ? CANVAS_TYPE.CANVAS_WEBGL : CANVAS_TYPE.CANVAS_2D;
    let width = getValue("width");
    let height = getValue("height");
    let constraints = {};
    canvas = Canvas("canvasContainer", width, height, type,
        getCheckbox("mirror"), getCheckbox("useAnimFrame"));
    mockVideo = Video(canvas);
    if (!getCheckbox("sendVideo")) {
        constraints.video = false;
    } else {
        constraints.video = {
            width: width,
            height: height
        };
    }
    constraints.audio = getCheckbox("sendAudio");
    mockVideo.start(constraints);
    return canvas.canvasStream();
}

17. Canvas and video elements stopping and destroying¶

code

const stopCanvasStream = function() {
    if (mockVideo) {
        mockVideo.stop();
    }
    if (canvas) {
        canvas.close();
    }
}

18. Canvas operations¶

code

const Canvas = function(parentId, width, height, type, mirror, useRequestAnimationFrame) {
    const canvasObject = {
        canvas: null,
        useRequestAnimationFrame: false,
        context: null,
        stream: null,
        init: function(parentId, width, height, type, mirror, useRequestAnimationFrame) {
            ...
        },
        close: function() {
            ...
        },
        drawFrame: function(source) {
            ...
        },
        loop: function(video) {
            i...
        },
        canvasStream: function() {
            return stream;
        }
    };
    canvasObject.init(parentId, width, height, type, mirror, useRequestAnimationFrame);
    return canvasObject;
}

18.1 Canvas creation¶

code

const Canvas = function(parentId, width, height, type, mirror, useRequestAnimationFrame) {
    const canvasObject = {
        ...
        init: function(parentId, width, height, type, mirror, useRequestAnimationFrame) {
            let parent = document.getElementById(parentId);
            if (parent) {
                canvasObject.canvas = document.createElement("canvas");
                canvasObject.canvas.width = width;
                canvasObject.canvas.height = height;
                parent.appendChild(canvasObject.canvas);
                setDisplaySize(parent, width, height);
                canvasObject.mirror = mirror;
                canvasObject.useRequestAnimationFrame = useRequestAnimationFrame;
                if (type === CANVAS_TYPE.CANVAS_2D) {
                    canvasObject.context = Canvas2d(canvasObject.canvas, mirror);
                } else if (type === CANVAS_TYPE.CANVAS_WEBGL) {
                    canvasObject.context = CanvasWebGl(canvasObject.canvas, mirror);
                }
                stream = canvasObject.canvas.captureStream(30);
            }
        },
        close: function() {
            ...
        },
        drawFrame: function(source) {
            ...
        },
        loop: function(video) {
            ...
        },
        canvasStream: function() {
            ...
        }
    };
    canvasObject.init(parentId, width, height, type, mirror, useRequestAnimationFrame);
    return canvasObject;
}

18.2 Canvas destruction¶

code

const Canvas = function(parentId, width, height, type, mirror, useRequestAnimationFrame) {
    const canvasObject = {
        ...
        init: function(parentId, width, height, type, mirror, useRequestAnimationFrame) {
            ...
        },
        close: function() {
            if (canvasObject.canvas) {
                canvasObject.canvas.parentNode.style.display = "none";
                canvasObject.canvas.remove();
                canvasObject.canvas = null;
                canvasObject.stream = null;
            }
            canvasObject.useRequestAnimationFrame = false;
            canvasObject.context = null;
        },
        drawFrame: function(source) {
            ...
        },
        loop: function(video) {
            ...
        },
        canvasStream: function() {
            ...
        }
    };
    canvasObject.init(parentId, width, height, type, mirror, useRequestAnimationFrame);
    return canvasObject;
}

18.3 Drawing frame on canvas¶

code

const Canvas = function(parentId, width, height, type, mirror, useRequestAnimationFrame) {
    const canvasObject = {
        ...
        init: function(parentId, width, height, type, mirror, useRequestAnimationFrame) {
            ...
        },
        close: function() {
            ...
        },
        drawFrame: function(source) {
            if (source && canvasObject.context) {
                canvasObject.context.drawFrame(source);
            }
        },
        loop: function(video) {
            ...
        },
        canvasStream: function() {
            ...
        }
    };
    canvasObject.init(parentId, width, height, type, mirror, useRequestAnimationFrame);
    return canvasObject;
}

18.4 Loop method to redraw on the canvas¶

code

const Canvas = function(parentId, width, height, type, mirror, useRequestAnimationFrame) {
    const canvasObject = {
        ...
        init: function(parentId, width, height, type, mirror, useRequestAnimationFrame) {
            ...
        },
        close: function() {
            ...
        },
        drawFrame: function(source) {
            ...
        },
        loop: function(video) {
            if (!video.paused && !video.ended) {
                canvasObject.drawFrame(video);
                if (canvasObject.useRequestAnimationFrame) {
                    requestAnimationFrame(() => {
                        canvasObject.loop(video);
                    });
                } else {
                    setTimeout(() => {
                        canvasObject.loop(video);
                    }, 1000 / 30); // drawing at 30fps
                }
            }
        },
        canvasStream: function() {
            ...
        }
    };
    canvasObject.init(parentId, width, height, type, mirror, useRequestAnimationFrame);
    return canvasObject;
}

18.5 Mirroring 2d canvas¶

code

const Canvas2d = function(canvas, mirror) {
    const canvas2d = {
        canvas: null,
        api: null,
        init: function(canvas, mirror) {
            if (canvas) {
                canvas2d.canvas = canvas;
                let context = canvas2d.canvas.getContext(CANVAS_TYPE.CANVAS_2D);
                if (mirror) {
                    context.translate(canvas2d.canvas.width, 0);
                    context.scale(-1, 1);
                    context.save();
                }
                canvas2d.api = {
                    context: context
                }
            }
        },
        close: function() {
            ...
        },
        drawFrame: function(source) {
            ...
        }
    };
    canvas2d.init(canvas, mirror);
    return canvas2d;
}

18.6 Drawing a frame on 2d canvas¶

code

const Canvas2d = function(canvas, mirror) {
    const canvas2d = {
        canvas: null,
        api: null,
        init: function(canvas, mirror) {
            ...
        },
        close: function() {
            ...
        },
        drawFrame: function(source) {
            if (source && canvas2d.api && canvas2d.api.context) {
                canvas2d.api.context.drawImage(source, 0, 0);
            }
        }
    };
    canvas2d.init(canvas, mirror);
    return canvas2d;
}

18.7 Mirroring WebGL canvas¶

code

const CanvasWebGl = function(canvas, mirror) {
    const canvasWebGl = {
        canvas: null,
        api: null,
        init: function(canvas, mirror) {
            if (canvas) {
                canvasWebGl.canvas = canvas;
                let context = canvasWebGl.canvas.getContext(CANVAS_TYPE.CANVAS_WEBGL);
                let vertexShaderSource = ...;
                if (mirror) {
                    vertexShaderSource = `
                  attribute vec2 a_position;
                  attribute vec2 a_texCoord;
                  varying vec2 v_texCoord;
                  void main() {
                    gl_Position = vec4(a_position, 0, 1);
                    v_texCoord = vec2(1.0 - a_texCoord.x, a_texCoord.y); // X axis mirroring
                  }
                `;
                }

                ...

                const texture = context.createTexture();
                ...
                context.pixelStorei(context.UNPACK_FLIP_Y_WEBGL, true);

                ...
                canvasWebGl.api = {
                    context: context,
                    program: program,
                    positionBuffer: positionBuffer,
                    posLoc: posLoc,
                    texCoordBuffer: texCoordBuffer,
                    texLoc: texLoc,
                    texture: texture,
                    uTexLoc: uTexLoc
                };
            }
        },
        close: function() {
            ...
        },
        drawFrame: function(source) {
            ...
        }
    };
    canvasWebGl.init(canvas, mirror);
    return canvasWebGl;
}

18.8 Drawing a frame on WebGL canvas¶

code

const CanvasWebGl = function(canvas, mirror) {
    const canvasWebGl = {
        canvas: null,
        api: null,
        init: function(canvas, mirror) {
            ...
        },
        close: function() {
            ...
        },
        drawFrame: function(source) {
            if (source && canvasWebGl.api && canvasWebGl.api.context) {
                let context = canvasWebGl.api.context;
                context.viewport(0, 0, canvasWebGl.canvas.width, canvasWebGl.canvas.height);
                context.clear(context.COLOR_BUFFER_BIT);

                context.useProgram(canvasWebGl.api.program);

                // Position
                context.bindBuffer(context.ARRAY_BUFFER, canvasWebGl.api.positionBuffer);
                context.enableVertexAttribArray(canvasWebGl.api.posLoc);
                context.vertexAttribPointer(canvasWebGl.api.posLoc, 2, context.FLOAT, false, 0, 0);

                // Texture coordinates
                context.bindBuffer(context.ARRAY_BUFFER, canvasWebGl.api.texCoordBuffer);
                context.enableVertexAttribArray(canvasWebGl.api.texLoc);
                context.vertexAttribPointer(canvasWebGl.api.texLoc, 2, context.FLOAT, false, 0, 0);

                // Renew texture from source
                context.bindTexture(context.TEXTURE_2D, canvasWebGl.api.texture);
                context.texImage2D(
                    context.TEXTURE_2D, 0, context.RGBA, context.RGBA,
                    context.UNSIGNED_BYTE, source
                );
                context.uniform1i(canvasWebGl.api.uTexLoc, 0);

                context.drawArrays(context.TRIANGLES, 0, 6);
            }
        }
    };
    canvasWebGl.init(canvas, mirror);
    return canvasWebGl;
}

19. Video capture element operations¶

code

const Video = function(canvas) {
    const videoObject = {
        canvas: null,
        video: null,
        init: function(canvas) {
            ...
        },
        start: function(constraints) {
            ...
        },
        stop: function() {
            ...
        }
    };
    videoObject.init(canvas);
    return videoObject;
}

19.1 Video element creation¶

code

const Video = function(canvas) {
    const videoObject = {
        canvas: null,
        video: null,
        init: function(canvas) {
            videoObject.canvas = canvas;
            videoObject.video = document.createElement("video");
            videoObject.video.setAttribute("playsinline", "");
            videoObject.video.setAttribute("webkit-playsinline", "");
            videoObject.video.muted = true;
            videoObject.video.addEventListener("play", () => {
                videoObject.canvas.loop(videoObject.video);
            }, 0);
        },
        start: function(constraints) {
            ...
        },
        stop: function() {
            ...
        }
    };
    videoObject.init(canvas);
    return videoObject;
}

19.2 Video capture starting¶

code

const Video = function(canvas) {
    const videoObject = {
        canvas: null,
        video: null,
        init: function(canvas) {
            ...
        },
        start: function(constraints) {
            let hasVideo = false;
            let hasAudio = false;
            let canvasStream = videoObject.canvas.canvasStream();
            if (constraints.video) {
                hasVideo = true;
            }
            if (constraints.audio) {
                hasAudio = true;
            }
            navigator.mediaDevices.getUserMedia(constraints)
                .then((stream) => {
                    videoObject.video.srcObject = stream;
                    videoObject.video.onloadedmetadata = () => {
                        if (!hasVideo) {
                            canvasStream.removeTrack(canvasStream.getVideoTracks()[0]);
                        }
                        if (hasAudio) {
                            videoObject.video.muted = false;
                            try {
                                let audioContext = new (window.AudioContext || window.webkitAudioContext)();
                                let source = audioContext.createMediaElementSource(videoObject.video);
                                let destination = audioContext.createMediaStreamDestination();
                                source.connect(destination);
                                canvasStream.addTrack(destination.stream.getAudioTracks()[0]);
                            } catch (e) {
                                console.warn("Failed to create audio context");
                            }
                        }
                    };
                    videoObject.video.play();
                });
        },
        stop: function() {
            ...
        }
    };
    videoObject.init(canvas);
    return videoObject;
}

19.3 Video capture stopping¶

code

const Video = function(canvas) {
    const videoObject = {
        canvas: null,
        video: null,
        init: function(canvas) {
            ...
        },
        start: function(constraints) {
            ...
        },
        stop: function() {
            if (videoObject.video) {
                videoObject.video.pause();
                videoObject.video.removeEventListener('play', null);
                let tracks = videoObject.video.srcObject.getTracks();
                for (let i = 0; i < tracks.length; i++) {
                    tracks[i].stop();
                }
                videoObject.video.srcObject = null;
                videoObject.video = null;
                videoObject.canvas = null;
            }
        }
    };
    videoObject.init(canvas);
    return videoObject;
}
